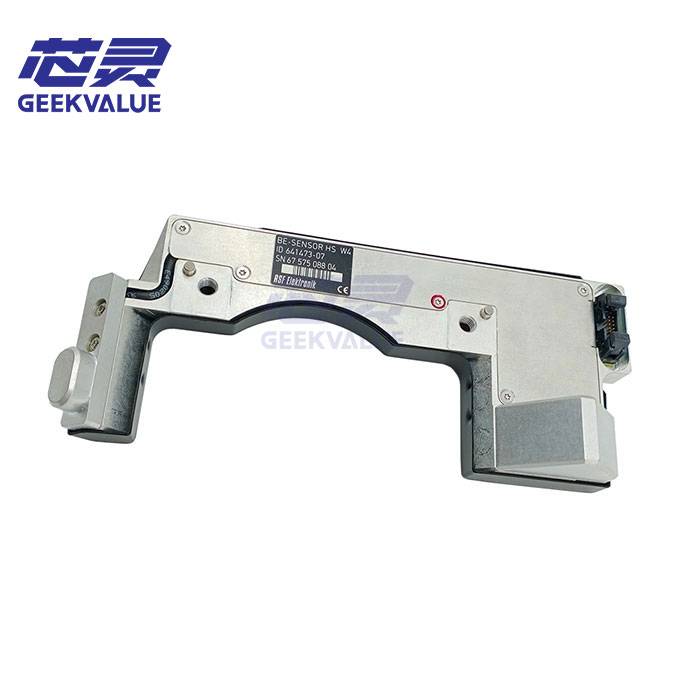

GEEKVALUE provides the P/N 03037106 with a focus on Signal Integrity. We understand that the CPP head is the heart of your placement speed; our sensors are verified for "Zero-Latency Response," ensuring your machine maintains its peak CPH (Components Per Hour) without being slowed down by sensor timeouts or false negatives.
Technical Specifications
Feature | Technical Data |
Product Type | CPP Head Component/Position Sensor |
Part Number (P/N) | 03037106 |
Compatibility | SIPLACE CP20, CPP, and X-Series Placement Heads |
Sensing Logic | High-Frequency Infrared/Optical Feedback |
Response Time | $< 1.5\text{ms}$ (Optimized for High-Speed Gantry) |
Connector Type | Gold-Plated Precision Micro-Interface |
Strategic Performance Advantages
· Enhanced Optical Filtration: The 03037106 is equipped with an advanced optical lens that filters out ambient factory lighting and LED glare. This ensuring that the sensor only reacts to the actual component presence, reducing "Vision Retries" and improving the overall first-pass yield.
· Contamination-Resistant Housing: Given its proximity to the moving parts of the CPP head, this sensor features a sealed, anti-static housing that resists the accumulation of solder paste flux and machine lubricants. This "Anti-Fouling" design significantly extends the maintenance interval compared to generic sensors.
· Thermal Stability Logic: High-speed placement generates heat within the gantry. The 03037106 is calibrated to maintain its sensing threshold across a wide temperature range, preventing "Thermal Drift" that can cause intermittent errors during long, high-volume production shifts.
· Direct Plug-and-Play Integration: Engineered to ASM’s exact electrical specifications, the 03037106 allows for immediate calibration. Once installed, it is instantly recognized by the SIPLACE software, allowing for rapid recovery of the placement head after maintenance.
The GEEKVALUE Advantage: "The Pulse of Placement Speed"
1. 360° Total Cost Optimization (TCO)
A failing sensor on a CPP head can lead to inconsistent pick-up rates and costly machine downtime. GEEKVALUE optimizes your TCO by providing 03037106 Sensors that have undergone Dynamic Switching Frequency Tests. By ensuring long-term sensor reliability, we help you avoid the labor costs associated with repeated gantry teardowns.
2. Trusted by 400+ Public Companies
Global leaders in smartphone assembly and high-speed consumer electronics trust GEEKVALUE for their CPP head spare parts. Our 03037106 sensors are the trusted choice for listed companies that require "Zero-Failure" material detection to maintain their competitive edge in high-volume markets.
3. Certified Electrical Reliability
GEEKVALUE’s 03037106 units are inspected for Voltage-Pulse Consistency and Pin-Point Conductivity. We ensure that every sensor arrives "Factory-Calibrated," providing the reliable feedback necessary for the world’s most advanced placement heads to operate at full speed.
Frequently Asked Questions (FAQ)
Q1: Is the 03037106 sensor compatible with all SIPLACE X-series heads?
A: This sensor is specifically designed for the CPP (Collect & Pick/Place) and CP20 head families. For the Twin-Head (TH) or other specialized heads, please verify the P/N in your machine's technical manual.
Q2: How often should the sensor lens be cleaned?
A: To maintain peak response times, GEEKVALUE recommends a light cleaning with a lint-free, IPA-moistened swab during your standard weekly head maintenance schedule.
Q3: How does GEEKVALUE verify the response time of this sensor?
A: Every unit undergoes an Oscilloscope Response Test. We simulate the high-speed vibration and pick-up cycles of a CP20 head to ensure the signal rise-and-fall times remain within ASM’s original sub-millisecond specifications.
Q4: Can this sensor help reduce "No-Pick" errors?
A: Absolutely. By providing more accurate feedback on the vacuum state and component presence, the 03037106 allows the machine to adjust its pick-up height or vacuum pressure more effectively, significantly reducing the "No-Pick" rate.
Q5: What is the packaging standard for this delicate electronic component?
A: We use Class-0 ESD Vacuum Packaging. Each 03037106 is housed in an anti-static container and protected by high-density, vibration-dampening foam to ensure the delicate optical elements remain in perfect alignment during transit.
