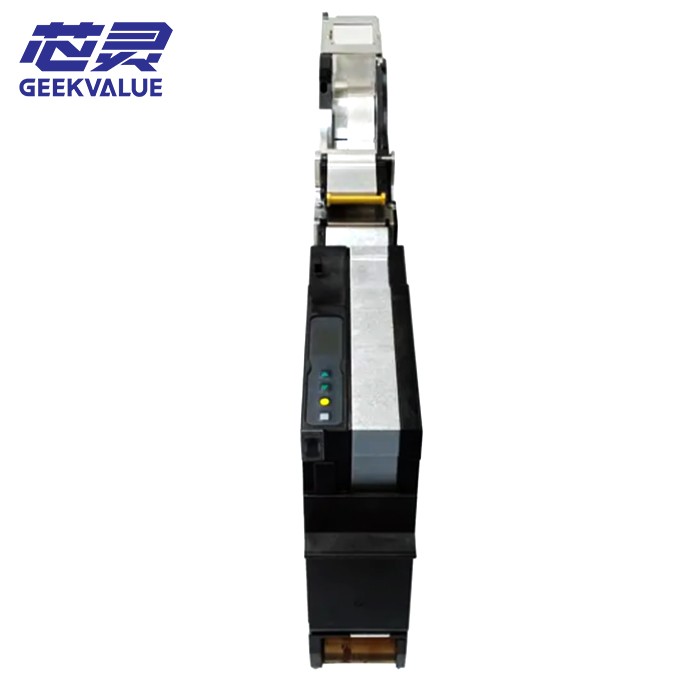

GEEKVALUE provides the P/N 00141377 with a focus on Structural Rigidity. We understand that wide-tape feeding is prone to lateral drift; our feeders are verified for "Track-Parallelism" to ensure that even under the weight of heavy 72mm reels, the feeding path remains perfectly linear.
Technical Specifications
Feature | Technical Data |
Product Type | Wide-Format Intelligent Electric Feeder |
Part Number (P/N) | 00141377 |
Tape Width | 72mm |
Compatibility | SIPLACE X, SX, and D-Series Platforms |
Drive Architecture | Reinforced High-Torque Stepping Motor |
Interface | ASM Gold-Plated 12-Pin Intelligent Bus |
Strategic Performance Advantages
· Mass-Inertia Compensation: The 00141377 features a digital drive profile tuned for heavy loads. By implementing a sophisticated "Ramp-Up/Ramp-Down" speed control, it eliminates the jarring vibrations that can cause tall or heavy 72mm components to tilt or "walk" within the pocket, a frequent cause of placement failures.
· Reinforced Dual-Point Peeling: For 72mm tapes, the cover-tape adhesive surface is significantly larger. The 00141377 is equipped with a high-strength, synchronized take-up drive that maintains uniform tension across the entire 72mm width, preventing "Peel-Back Shudder" and ensuring a clean opening for the placement head.
· Precision Lateral Stabilization: The 72mm tape guide system is precision-machined with high-wear-resistant alloys. This "Tight-Tolerance" track prevents the side-to-side play that often affects wide-format feeders, ensuring that the component's center of gravity remains perfectly aligned with the machine's pick-up datum.
· Full SIPLACE Software Synergy: As a fully intelligent module, the 00141377 integrates with the SIPLACE "Setup Assistant." It relays real-time consumption data and feeder health metrics, ensuring that your most expensive large-scale components are tracked with 100% digital accuracy.
The GEEKVALUE Advantage: "Stability for Substance"
1. 360° Total Cost Optimization (TCO)
The components typically found on 72mm tapes—such as complex connectors—carry a high unit cost. GEEKVALUE optimizes your TCO by providing 00141377 Feeders that have undergone Full-Load Indexing Audits. By maximizing pick-up success rates, we help you eliminate the massive scrap costs associated with misaligned large-part placement.
2. Trusted by 400+ Public Companies
Global leaders in automotive electronics and server infrastructure trust GEEKVALUE for their wide-format feeding needs. Our 72mm feeders are the preferred choice for listed companies that require "Industrial-Grade" durability for their high-stress, high-mix production lines.
3. Optimized for Long-Run Reliability
GEEKVALUE’s 00141377 units are designed for longevity. We ensure that the internal gear trains and motor brushes are inspected to withstand the continuous high-torque requirements of 72mm feeding, providing a stable ROI over years of production.
Frequently Asked Questions (FAQ)
Q1: How many standard slots does the 72mm feeder occupy on a trolley?
A: Due to its 72mm width, this feeder typically occupies the space of 9 standard 8mm slots. We recommend optimizing your feeder trolley layout to place these wide units in balanced positions for better weight distribution.
Q2: Is this feeder compatible with both plastic and metal-reinforced tapes?
A: Yes. The 00141377’s drive system is designed to handle the friction profiles of standard conductive plastic tapes and the increased weight of specialized packaging often used for heavy metal shielding.
Q3: How does GEEKVALUE verify the pick-up accuracy?
A: Every unit undergoes a Static and Dynamic Alignment Test. We use high-precision calipers and machine vision simulation to ensure the 72mm pocket centers consistently within $\pm 0.03\text{mm}$ during continuous operation.
Q4: Can the feeding pitch be adjusted for different component lengths?
A: Absolutely. As an intelligent digital feeder, the pitch is software-programmable via the machine interface, allowing a single 00141377 to handle various component formats on 72mm tape.
Q5: What is the packaging standard for this heavy module?
A: We use Heavy-Duty Reinforced Industrial Packaging. Given its size and weight, each 00141377 is vacuum-sealed and housed in a custom-contoured, shock-absorbent foam crate to prevent any structural misalignment during transit.
