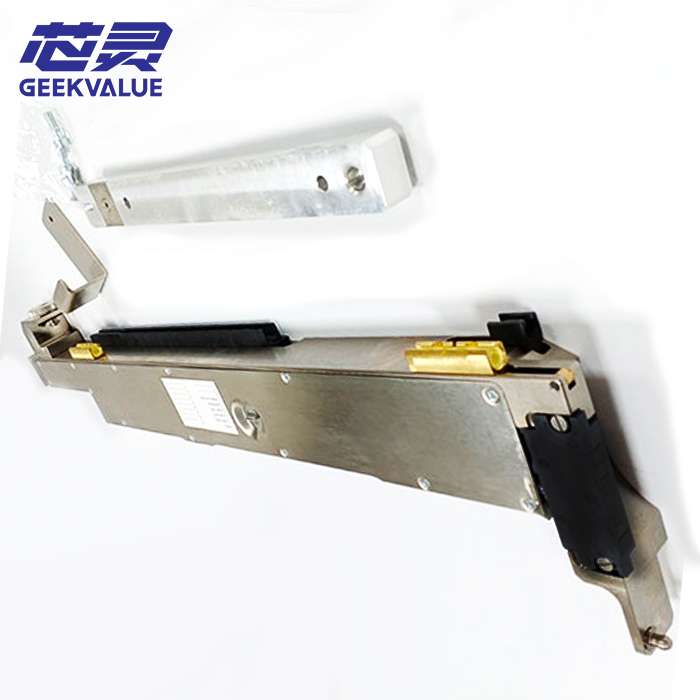

The ASM 00141305 is a high-performance intelligent feeder designed to handle the critical gap between small passives and oversized modules. Optimized for mid-width carrier tapes, this module is the primary choice for delivering SOP, SOT, and medium-sized inductor components to the SIPLACE X, SX, and D-series platforms. The 00141305 is distinguished by its Enhanced Torque Drive System, which provides the consistent mechanical force necessary to advance wider, heavier carrier tapes without the "Stepping Lag" that can occur in underpowered units. By combining ASM’s signature intelligent bus communication with a reinforced mechanical chassis, the 00141305 ensures that mid-range components are presented with the same sub-micron reliability as standard 8mm passives.
GEEKVALUE provides the P/N 00141305 with a focus on Feed-Cycle Consistency. We recognize that mid-width tapes often carry more expensive ICs; our units are verified for "Pitch-Perfect Advancement," ensuring that vibration is neutralized before the placement head reaches the pick-up coordinate.
Technical Specifications
Feature | Technical Data |
Product Type | Mid-Width Intelligent Electric Feeder |
Part Number (P/N) | 00141305 |
Tape Compatibility | Optimized for 12mm / 16mm Formats |
Compatibility | SIPLACE X, SX, and D-Series Gantry Systems |
Drive Technology | High-Torque Brushless Micro-Stepping Motor |
Interface | Gold-Plated 12-Pin Intelligent Data Bus |
Adjustment | Software-Programmable Feeding Pitch |
Strategic Performance Advantages
· Heavy-Duty Indexing Logic: Wider tapes (12/16mm) generate more friction and inertia. The 00141305 features an upgraded motor controller that dynamically adjusts the current to maintain a flat torque curve, preventing "Sprocket Wear" and ensuring a smooth start-stop motion even with heavy plastic reels.
· Digital Material Synchronization: Like all premium ASM modules, the 00141305 features an onboard memory chip. It automatically syncs with the SIPLACE "Setup Center," providing real-time data on component consumption and batch tracking, which is essential for automotive and medical "Zero-Defect" manufacturing.
· Vibration-Isolating Chassis: To protect sensitive IC leads, the 00141305 is built with an anti-resonance internal frame. This design dampens the mechanical shock during the indexing phase, ensuring that components do not "tilt" or "bounce" within the pocket, thereby maintaining a 100% pick-up success rate.
· Optimized Peeling Tension: The 00141305 utilizes an intelligent take-up system for the cover tape. It maintains a constant peeling force regardless of the reel's diameter, preventing the "Shuddering" effect that often leads to vision alignment retries on larger components
The GEEKVALUE Advantage: "Versatility for Modern PCBAs"
1. 360° Total Cost Optimization (TCO)
Middle-range components often represent the highest "Value-per-Reel" on a BOM. GEEKVALUE optimizes your TCO by providing 00141305 Feeders that have undergone Load-Bearing Accuracy Audits. By stabilizing the delivery of these high-value parts, we help you reduce scrap rates and the costly machine idling time caused by pick failures.
2. Trusted by 400+ Public Companies
Global leaders in renewable energy electronics and industrial control systems trust GEEKVALUE for their mid-width feeding needs. Our 00141305 feeders are the reliable choice for listed companies that require a "Flex-Line" setup capable of switching between different IC packages without mechanical reconfiguration.
3. Ready-to-Dock Calibration
GEEKVALUE’s 00141305 units are inspected for Data Pin Integrity and Sprocket Alignment. We ensure that every unit is "Plug-and-Play" ready, allowing for rapid kitting and hot-swapping during high-mix production shifts without communication lag.
Frequently Asked Questions (FAQ)
Q1: Can the 00141305 be used for 8mm tapes in an emergency?
A: While physically possible with some machine software, the 00141305 is mechanically optimized for the higher torque requirements of 12mm and 16mm tapes. For 8mm tapes, using the dedicated standard 8mm feeders (like the 00141370) is recommended for optimal slot efficiency.
Q2: Is this feeder compatible with the SIPLACE "S" (Silver) Series?
A: Yes, the 00141305 is fully compatible with the Silver-series gantry systems and the standard intelligent feeder trolleys used across the X and SX generations.
Q3: How does GEEKVALUE test the "Torque Consistency" of this module?
A: Every unit undergoes a Full-Mass Pull Test. We simulate the resistance of a maximum-weight 16mm reel to ensure the motor maintains indexing accuracy within $\pm 0.03\text{mm}$ under maximum load.
Q4: How does this model handle "Deep-Pocket" carrier tapes?
A: The 00141305 features a high-clearance exit path specifically designed for the deeper pockets of power inductors and taller semiconductor packages, ensuring no mechanical interference during the feeding cycle.
Q5: What is the packaging standard for this multi-purpose module?
A: We use Class-0 ESD and Shock-Proof Reinforced Packaging. Each 00141305 is vacuum-sealed and protected by custom-contoured foam to ensure the high-torque motors and alignment pins arrive in perfect factory calibration.
