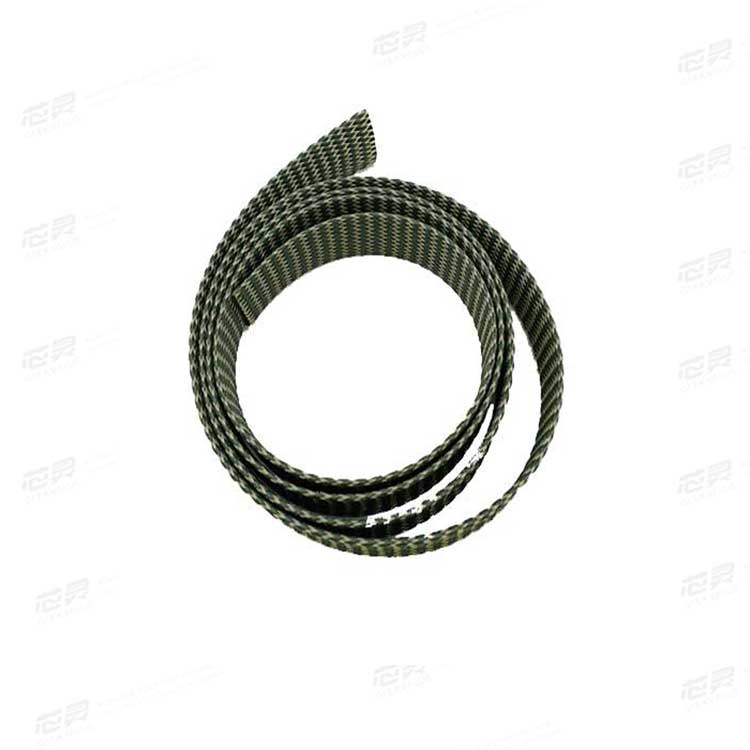

The ASM 00315977 Belt is a high-performance transmission component designed for the rigorous motion requirements of SIPLACE placement systems. Engineered for high-speed synchronization, this timing belt ensures that gantry movements and component feeding sequences remain perfectly aligned.
At GEEKVALUE, we treat even the smallest mechanical part as a critical success factor. We provide the P/N 00315977 with a focus on Zero-Stretch Durability, ensuring that your machine maintains its high-precision calibration over millions of cycles.
Technical Specifications
Feature | Technical Data |
Product Type | High-Precision Timing Belt |
Part Number (P/N) | 00315977 |
Material | Reinforced Polyurethane with Steel/Aramid Core |
Tooth Profile | Precision-Molded for ASM Drive Pulleys |
Compatibility | SIPLACE X, SX, and D-Series Platforms |
Application | Gantry Drive, Feeder Modules, and Pick-and-Place Actuators |
Key Performance Advantages
· Anti-Stretch Core Technology: The 00315977 belt features an internal reinforcement core (steel or aramid) that prevents elongation. This is vital for maintaining the "Pitch Accuracy" required for micron-level component placement.
· Low-Vibration Operation: The tooth profile is manufactured to exact tolerances to ensure seamless engagement with ASM drive pulleys, reducing mechanical vibration and noise at high accelerations.
· Superior Chemical Resistance: Specifically formulated to resist degradation from SMT environment factors, such as machine lubricants, solder flux fumes, and industrial cleaning agents.
· Enhanced Service Life: High-grade outer materials reduce friction and heat buildup, significantly extending the interval between scheduled belt replacements and reducing "Belt Dust" accumulation inside the machine.
The GEEKVALUE Advantage: "Mechanical Excellence"
1. 360° Total Cost Optimization (TCO)
A snapped or stretched belt can cause catastrophic downtime. GEEKVALUE optimizes your TCO by providing belts that maintain their tension longer. By preventing "Gantry Creep" or timing errors, our P/N 00315977 reduces the need for frequent recalibrations and emergency repairs.
2. Trusted by 400+ Public Companies
Reliability in the smallest parts is what keeps global manufacturing giants operational. We serve over 400+ public companies who trust GEEKVALUE to supply belts that meet or exceed original equipment manufacturer (OEM) standards for tensile strength and fatigue resistance.
3. Smart Inventory Management
Consumables like the 00315977 belt should never be the cause of a line stoppage. GEEKVALUE maintains a "Safety Stock" of high-wear spare parts, ensuring that you have immediate access to replacements for your preventive maintenance (PM) schedules.
Frequently Asked Questions (FAQ)
Q1: How often should the ASM 00315977 belt be replaced?
A: Replacement intervals depend on machine usage and speed settings. We recommend checking for signs of fraying, tooth wear, or "glazing" every 6 months during your standard PM. GEEKVALUE’s high-durability belts are designed to maximize these intervals.
Q2: Can a worn belt affect placement accuracy?
A: Absolutely. If the belt (00315977) stretches or loses its "crisp" engagement with the pulley, it can lead to micro-backlash in the gantry movement, directly resulting in "Offset" errors or poor Cpk values.
Q3: Is GEEKVALUE’s belt compatible with all ASM SIPLACE series?
A: P/N 00315977 is a specific dimension. While it fits many X and SX series configurations, our technical team will verify your machine's module type to ensure this is the exact part required for your specific drive system.
Q4: How does GEEKVALUE ensure the quality of these belts?
A: We conduct batch testing for tensile strength and shore hardness. Every belt is inspected for uniform tooth geometry and surface integrity to ensure it doesn't shed particles that could contaminate your vision system or PCB.
