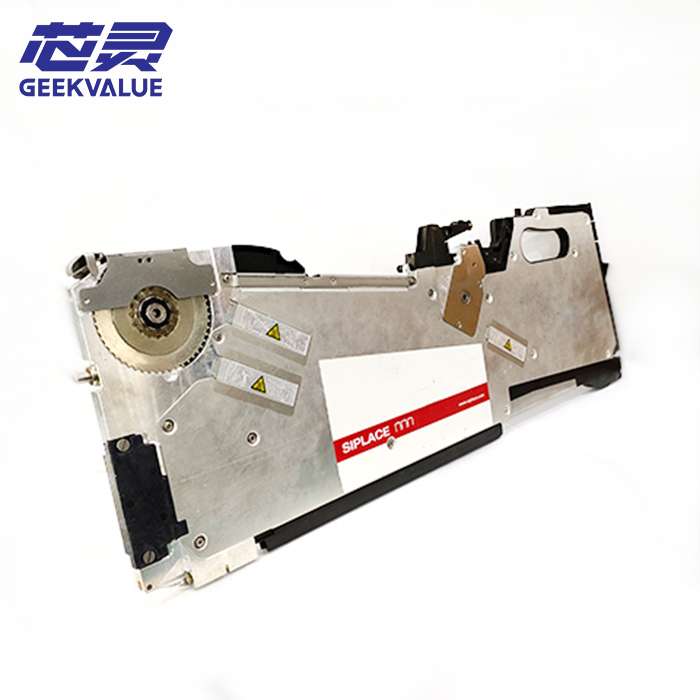

ASM SIPLACE 8mm Intelligent Feeder | P/N: 00141480

The ASM 00141480 is a highly optimized 8mm intelligent electric feeder designed to maximize the agility of SIPLACE X, SX, and SX+ placement platforms. This model represents the "Agile-Line" of ASM feeders, where the focus is on reducing the physical weight and increasing the digital responsiveness of the unit. The 00141480 is engineered for manufacturers who operate in high-mix environments, where frequent feeder changeovers and rapid kitting are the norm. It provides a seamless balance between Mechanical Speed and Digital Intelligence, ensuring that every 8mm component—from standard resistors to sensitive LEDs—is delivered with consistent tension and sub-millimeter precision.

GEEKVALUE provides the P/N 00141480 with a focus on Operational Ergonomics. We ensure that the docking interface and the reel-loading path are calibrated for "Low-Force Engagement," allowing operators to perform hundreds of changeovers per shift without compromising the feeder's alignment pins or the machine's data ports.

Technical Specifications

Feature	Technical Data
Product Type	Lightweight Intelligent Electric Feeder
Part Number (P/N)	00141480
Tape Width	8mm
Compatibility	SIPLACE X, SX, SX+, and modern D-Series
Drive System	Ultra-Responsive Brushless Digital Motor
Pitch Support	Programmable (1mm, 2mm, 4mm+)
Interface	ASM Gold-Plated 12-Pin Intelligent Bus



Strategic Performance Advantages

· Rapid Handshake Technology: The 00141480 features an upgraded onboard microcontroller that reduces the time required for the SIPLACE OS to "recognize" the feeder upon docking. This "Instant-ID" capability is essential for minimizing the "setup latency" during complex job changeovers.

· Optimized Tape-Path Friction: Utilizing a specialized composite coating on the tape guides, the 00141480 significantly reduces the drag coefficient for both paper and plastic carrier tapes. This results in smoother feeding at peak gantry speeds and prevents the "Tape-Jerking" that can displace 0402 components.

· Intelligent Tension Feedback: The 00141480 incorporates a self-adjusting peeling motor. By monitoring the resistance of the cover tape in real-time, the feeder compensates for varying adhesive strengths between different component brands, ensuring a steady and vibration-free pocket opening.

· High-Stiffness Chassis Design: Despite its reduced weight, the chassis of the 00141480 is built from high-tensile alloys. This prevents structural flexing when the placement head exerts downward pressure during high-speed picking, maintaining a stable "Z-Reference" for every component.

The GEEKVALUE Advantage: "Efficiency in Motion"

1. 360° Total Cost Optimization (TCO)

In a high-mix factory, time lost during setup is the largest hidden cost. GEEKVALUE optimizes your TCO by providing 00141480 Feeders that have undergone Docking-Cycle Durability Audits. By ensuring a perfect data connection every time, we help you eliminate the frustrating "Feeder Recognition Errors" that delay production starts.

2. Trusted by 400+ Public Companies

Global leaders in medical device manufacturing and aerospace electronics trust GEEKVALUE for their 8mm feeder infrastructure. Our 00141480 units are the preferred choice for listed companies that require "Agile Manufacturing" capabilities without sacrificing the traceability and precision of the ASM ecosystem.

3. Optimized for Smart Kitting Systems

GEEKVALUE’s 00141480 units are fully compatible with SIPLACE Material Manager and LED-guided kitting carts. We ensure the internal memory correctly stores the "Feeder Health Score," allowing your software to prioritize the best-performing feeders for your most critical high-speed gantry positions.

Frequently Asked Questions (FAQ)

Q1: What makes the 00141480 different from the standard 00141370?

A: The 00141480 is a newer generation focused on weight reduction and faster digital communication. It is designed to be more "agile" for operators during setup while providing a more responsive drive system for the latest generation of SIPLACE gantry heads.

Q2: Does this feeder support 2mm pitch for 0402/0201 components?

A: Yes. The 00141480 is fully programmable for various pitches. While it excels at 4mm and 2mm pitches, its high-resolution motor also supports the precision required for high-volume 0402 placement.

Q3: How does GEEKVALUE verify the "Data Integrity" of the feeder?

A: Every unit undergoes a Communication Stress Test. We dock and undock the feeder 100 times while monitoring the data bus for "Packet Loss," ensuring the ID recognition is 100% reliable for your intelligent setup systems.

Q4: Is the cover tape removal system easy to maintain?

A: Yes. The 00141480 features a "Quick-Release" cover tape path, allowing operators to clear tape dust or debris in seconds without the need for specialized tools.

Q5: What is the packaging standard for this agile module?

A: We use Class-0 ESD and Shock-Absorbent Industrial Packaging. Each 00141480 is vacuum-sealed and housed in a custom-contoured foam crate to ensure the sensitive digital electronics and alignment pins arrive in perfect factory calibration.
