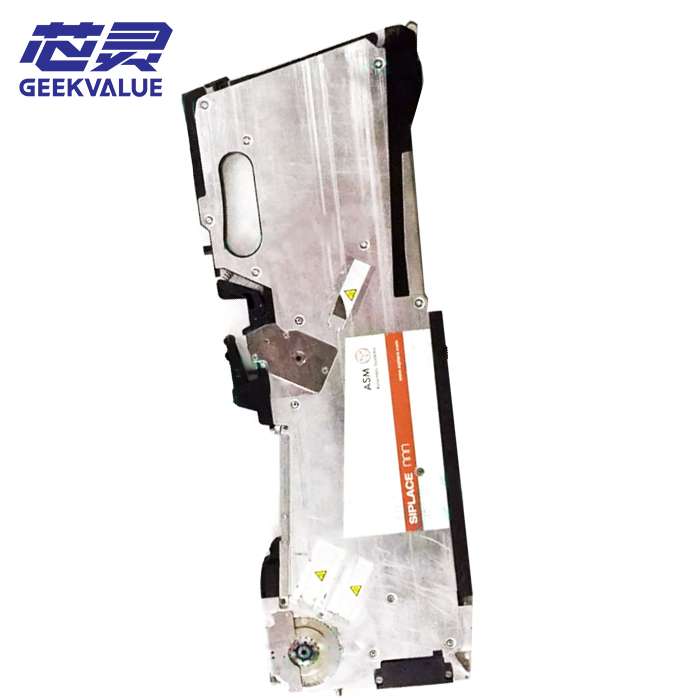

The ASM 00141370 is the definitive workhorse of the SIPLACE 8mm feeder lineup. Engineered for the rigorous demands of high-volume SMT assembly, this intelligent electric feeder is optimized for the continuous delivery of standard 8mm paper and plastic carrier tapes. While specialized sensor-feeders exist for ultra-micro components, the 00141370 excels in Reliability and Throughput Consistency for the vast majority of passive components. Its robust mechanical architecture is designed to withstand millions of cycles with minimal maintenance, making it the primary choice for manufacturers who prioritize "Up-time" and a low total cost of ownership across their SIPLACE X, SX, and D-series lines.
GEEKVALUE provides the P/N 00141370 with a focus on Mechanical Resiliency. We recognize that in a 24/7 factory, the 8mm feeder is the most cycled asset; our units are verified for "Gear-Train Integrity" to ensure that indexing remains crisp and precise throughout the entire life of the feeder.
Technical Specifications
Feature | Technical Data |
Product Type | Standard Intelligent Electric Feeder |
Part Number (P/N) | 00141370 |
Tape Width | 8mm |
Compatibility | SIPLACE X, SX, D, and C-Series Platforms |
Drive Architecture | Precision Brushless DC Stepping Motor |
Component Range | 0402, 0603, 0805, 1206, and SOT Packages |
Interface | ASM Gold-Plated 12-Pin Intelligent Data Bus |
Strategic Performance Advantages
· Industrial-Grade Cycle Longevity: The 00141370 is built with hardened internal components designed to resist the abrasive dust often generated by paper carrier tapes. This "Hardened-Path" design ensures that the indexing accuracy does not degrade even after hundreds of reel changes.
· Universal Platform Synergy: This feeder is a "True Universal" module. It is recognized instantly by the SIPLACE software across different machine generations, allowing for seamless feeder pooling between X-series high-speed lines and SX-series flexible lines without firmware conflicts.
· High-Speed Peeling Synchronicity: The 00141370 utilizes a high-torque, synchronized cover tape take-up mechanism. By maintaining a constant peeling angle and tension, it prevents the "Tape-Snag" issues that cause gantry stoppages, ensuring a smooth pick-up for high-speed heads like the CP20.
· Intelligent Material Tracking: Despite its focus on durability, the 00141370 is fully "Smart." It features an onboard memory chip that tracks the component count and unique feeder ID, enabling full material traceability and predictive "Low-Material" alerts within the ASM ecosystem.
The GEEKVALUE Advantage: "Proven Performance, Maximum ROI"
1. 360° Total Cost Optimization (TCO)
The 8mm feeder is the most numerous asset in any SMT facility. GEEKVALUE optimizes your TCO by providing 00141370 Feeders that have undergone Endurance Fatigue Testing. By providing a stable, long-life feeding solution, we help you reduce the frequency of feeder repairs and the associated labor costs.
2. Trusted by 400+ Public Companies
Global leaders in consumer appliances and industrial electronics trust GEEKVALUE for their 8mm standard feeder fleets. Our 00141370 units are the reliable choice for listed companies that require a standardized, high-performance feeding platform across multiple global production sites.
3. Optimized for Rapid Kitting
GEEKVALUE’s 00141370 units are inspected for "Docking Ease." We ensure that the mechanical interface and data pins are in perfect alignment, allowing operators to perform rapid kitting and "Hot-Swaps" without the risk of communication errors or mechanical jams.
Frequently Asked Questions (FAQ)
Q1: What is the difference between the 00141370 and the sensor-based 8mm feeders?
A: The 00141370 is the high-durability standard version, ideal for 0402 and larger components. Sensor-based versions (like the 00141490) are recommended for ultra-small 0201/01005 components where closed-loop feedback is necessary to correct for tape stretch.
Q2: Does this feeder support both paper and plastic carrier tapes?
A: Yes. The 00141370 is designed with a versatile tape path that handles the friction of paper tapes and the rigidity of plastic tapes with equal precision.
Q3: How does GEEKVALUE verify the indexing accuracy of a used or refurbished 00141370?
A: Every unit undergoes a 10,000-Cycle Indexing Audit. We use high-precision gauges to ensure the stopping position remains within ASM's original $\pm 0.03\text{mm}$ specification throughout the test.
Q4: Can this feeder be used on a SIPLACE SX "Smart" trolley?
A: Absolutely. It is fully compatible with the intelligent bus of the SX, X, and modern D-series trolleys.
Q5: What is the packaging standard for this industrial workhorse?
A: We use Class-0 ESD and High-Impact Industrial Packaging. Each 00141370 is vacuum-sealed and housed in a shock-absorbent foam container to ensure it arrives "Ready-to-Dock" at your facility.
