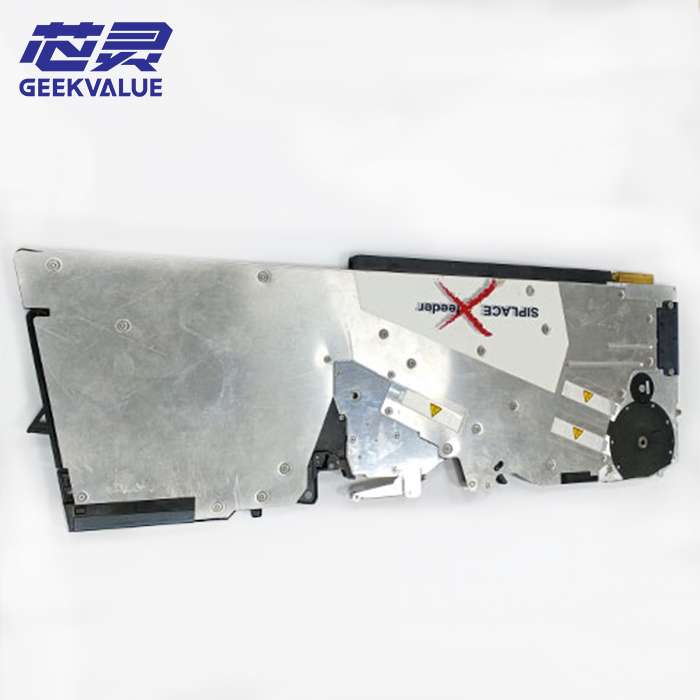

ASM SIPLACE 8mm Intelligent Feeder | P/N: 00141270

The ASM 00141270 is a foundational intelligent 8mm feeder that has set the benchmark for reliability across the SIPLACE X and D-series gantry systems. Engineered during the dawn of the "Smart Factory" era, this feeder was one of the first to implement the full 12-pin intelligent bus protocol, enabling seamless material tracking and digital pitch programming. The 00141270 is the "Legacy-Strength" workhorse of the 8mm family, optimized for the high-speed delivery of 0402, 0603, and 0805 components. Its design focuses on mechanical endurance and "Signal Consistency," making it a low-risk, high-return asset for production environments that demand massive throughput with minimal software overhead.

GEEKVALUE provides the P/N 00141270 with a focus on Extended Service Life. We recognize that these units are the backbone of high-capacity lines; our feeders undergo rigorous "Total System Audits" to ensure the internal gear-train and the intelligent chip reside within their peak operational parameters.

Technical Specifications

Feature	Technical Data
Product Type	Classic Intelligent Electric Feeder
Part Number (P/N)	00141270
Tape Width	8mm
Compatibility	SIPLACE X, SX, D1, D2, D3, and D4 Platforms
Motor Type	High-Torque Precision Stepping Motor
Pitch Capability	Software-Programmable (Standard 2mm/4mm)
Interface	Gold-Plated SIPLACE Intelligent Bus



Strategic Performance Advantages

· Time-Tested Reliability: The 00141270 architecture is renowned for its "Set-and-Forget" performance. Its internal drive components are manufactured from high-grade hardened steel, designed to resist the physical wear of high-speed indexing during 24/7 multi-shift operations.

· Universal Setup Compatibility: As one of the most widely recognized part numbers in the SIPLACE ecosystem, the 00141270 offers 100% compatibility with older kitting software and modern setup assistants. This makes it an ideal choice for factories managing a mix of machine generations.

· Stabilized Peeling Geometry: The 00141270 features a classic vertical peeling path that has been refined to handle a wide variety of cover-tape adhesives. This geometry ensures a clean, vibration-free opening of the tape pocket, which is critical for maintaining high pick-up rates with standard passive components.

· Low Maintenance Architecture: Unlike more complex sensor-integrated units, the 00141270 offers a "Simplified Service Path." Its internal layout allows for quick cleaning and lubrication of the drive sprockets, significantly reducing the Mean Time To Repair (MTTR).

The GEEKVALUE Advantage: "Proven Continuity"

1. 360° Total Cost Optimization (TCO)

For many high-volume products, the performance-to-cost ratio of the 00141270 is unbeatable. GEEKVALUE optimizes your TCO by providing 00141270 Feeders that have undergone Continuous-Run Validation. By utilizing these proven modules, you can expand your 8mm capacity at a fraction of the cost of new-generation equivalents without sacrificing placement quality.

2. Trusted by 400+ Public Companies

Global leaders in power electronics and home automation trust GEEKVALUE for their 8mm classic feeder requirements. Our 00141270 units are the trusted standard for listed companies that prioritize "Infrastructure Stability" and a predictable ROI for their global assembly plants.

3. Optimized for High-Volume Passives

GEEKVALUE’s 00141270 units are specifically inspected for "Sprocket-Hole Precision." We ensure that the mechanical indexing fingers are free from burs and alignment drift, providing the rock-solid material feed needed for high-speed chip shooting of resistors and capacitors.

Frequently Asked Questions (FAQ)

Q1: How does the 00141270 compare to the newer 00141370?

A: The 00141270 is an earlier generation of the 8mm intelligent feeder. While the 00141370 features some chassis refinements, both use the same intelligent bus and provide identical feeding performance for standard 8mm components.

Q2: Is this feeder compatible with the SIPLACE "S" (Silver) Trolley?

A: Yes. The 00141270 is fully compatible with S-trolleys, X-trolleys, and the modern intelligent feeder carts used across the X and SX platforms.

Q3: How does GEEKVALUE ensure the intelligent chip is still functional?

A: Every unit undergoes a Digital Handshake Audit. We connect the feeder to a SIPLACE interface and verify that it correctly reports its P/N, Serial Number, and cycle count without any data corruption.

Q4: Can I use this feeder for 0402 components?

A: Absolutely. The 00141270 is highly effective for 0402 (imperial) and larger components. For ultra-micro 0201 or 01005, we recommend moving to the sensor-integrated 8mm models for closed-loop precision.

Q5: What is the packaging standard for this classic module?

A: We use Class-0 ESD and Shock-Proof Industrial Packaging. Each 00141270 is vacuum-sealed and protected by custom-contoured foam to ensure that the alignment pins and the intelligent bus interface arrive in perfect working order.
