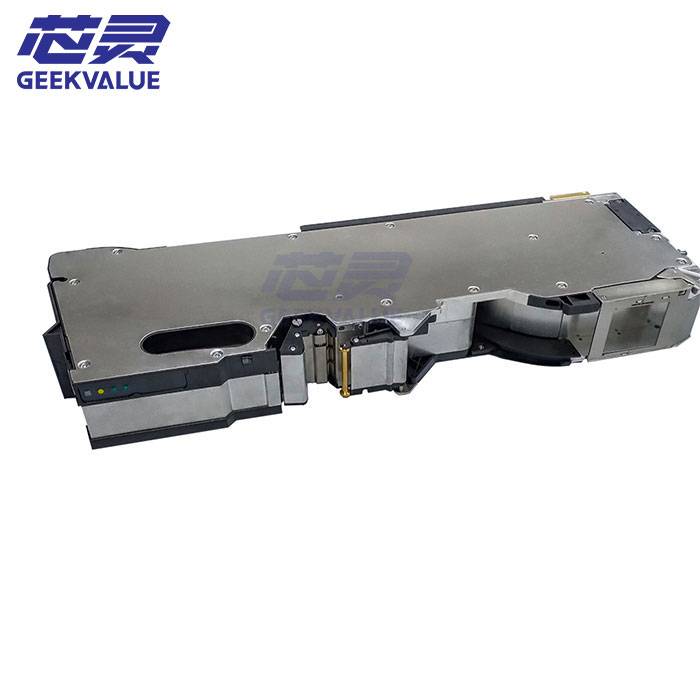

GEEKVALUE provides the P/N 00141376 with a focus on Inertial Precision. We recognize that 56mm components are among the most expensive on a BOM; our feeders are verified for "Soft-Motion Deceleration" to ensure that top-heavy components remain perfectly seated for the placement head.
Technical Specifications
Feature | Technical Data |
Product Type | Ultra-Wide Format Intelligent Electric Feeder |
Part Number (P/N) | 00141376 |
Tape Width | 56mm |
Compatibility | SIPLACE X, SX, and D-Series Platforms |
Drive System | High-Torque Servo-Logic Stepping Motor |
Interface | Gold-Plated ASM 12-Pin Intelligent Data Bus |
Max Component Depth | Optimized for Deep-Pocket Wide Formats |
Strategic Performance Advantages
· Dual-Torque Indexing Logic: 56mm reels carry substantial weight. The 00141376 utilizes a digital drive profile that provides high initial torque for tape advancement and a dampened braking curve for the stop phase. This prevents "Component Bounce," which is a primary cause of pick-up errors in large-format parts.
· Synchronized Wide-Peeling Path: 56mm cover tapes are prone to uneven tearing or sticking due to their wide adhesive surface. The 00141376 features a multi-point synchronized take-up system that ensures the cover tape is peeled back at a consistent 90-degree angle, maintaining a vibration-free pocket opening.
· Precision-Milled Lateral Guides: To prevent the "Sinuous Drift" of 56mm tapes, this feeder uses hardened, precision-ground guide rails. This ensures the component center remains within the machine's optical alignment window (X-Y axis), minimizing the need for vision-system time penalties.
· Smart-Factory Data Integrity: The 00141376 is fully integrated with ASM’s intelligent bus. It communicates specific feeder health metrics and real-time consumption data to the SIPLACE Setup Center, facilitating advanced traceability for high-value industrial and automotive modules.
The GEEKVALUE Advantage: "Mastering Large-Scale Precision"
1. 360° Total Cost Optimization (TCO)
For components on 56mm tapes, the cost of a single placement failure can exceed the cost of the feeder itself. GEEKVALUE optimizes your TCO by providing 00141376 Feeders that have undergone Full-Mass Dynamic Stress Tests. By stabilizing the delivery of these "Mega-SMDs," we help you eliminate the scrap and downtime associated with large-part feeding failures.
2. Trusted by 400+ Public Companies
Global leaders in 5G infrastructure and EV power electronics trust GEEKVALUE for their wide-format feeding solutions. Our 00141376 feeders are the trusted standard for listed companies that require heavy-duty durability and 100% data transparency for their mission-critical PCBA.
3. Certified Mechanical Calibration
GEEKVALUE’s 00141376 units are inspected for Gear-Train Alignment and Data Handshake Reliability. We ensure that every feeder docks with a perfect electrical connection, allowing for rapid kitting and hot-swapping during high-mix production shifts.
Frequently Asked Questions (FAQ)
Q1: How many slots does the 56mm 00141376 occupy on a feeder trolley?
A: The 00141376 typically occupies the space equivalent to 7 standard 8mm slots. It is recommended to balance the trolley load to accommodate these wider, heavier feeders.
Q2: Is this feeder compatible with deep-pocket tapes for high-profile connectors?
A: Yes. The 00141376 is designed with an extended vertical clearance path specifically to handle the deeper pockets and taller Z-heights common in 56mm packaging.
Q3: How does GEEKVALUE verify the accuracy of the 56mm indexing?
A: Every unit undergoes a Max-Inertia Repeatability Test. We simulate the weight of a full 56mm plastic reel and verify that the pick-point center remains stable within $\pm 0.03\text{mm}$ over an 8-hour continuous cycle.
Q4: Can the feeding pitch be software-adjusted for different part lengths?
A: Absolutely. As an intelligent digital feeder, the pitch (e.g., 12mm, 16mm, 24mm, etc.) is fully programmable through the SIPLACE machine interface, providing maximum flexibility for diverse 56mm components.
Q5: What is the packaging standard for this heavy-duty module?
A: We use Class-0 ESD and Reinforced Industrial Crating. Given the mass and sensitive electronics, each 00141376 is vacuum-sealed and protected by multi-layered, shock-absorbent foam to ensure it arrives in perfect factory calibration.
