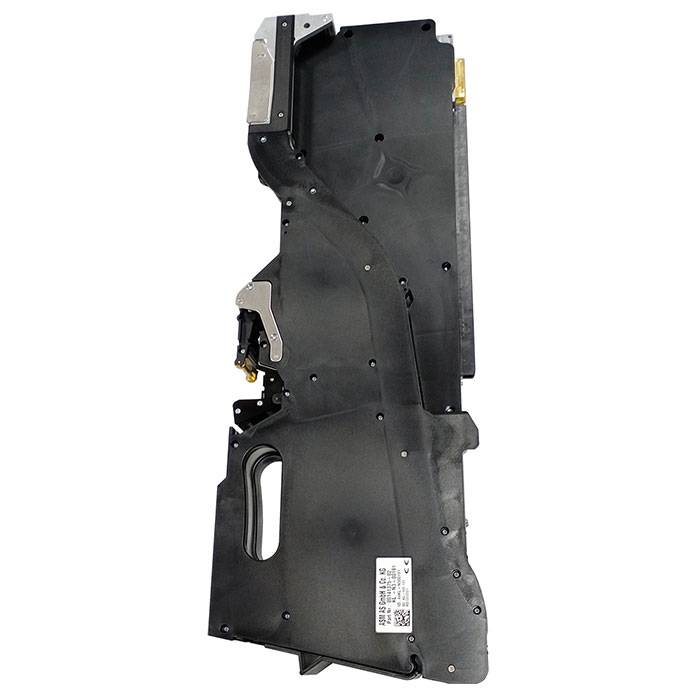

The ASM 00141375 is a heavy-duty intelligent feeder specifically engineered to handle 44mm wide carrier tapes with industrial-grade stability. As PCBAs increasingly incorporate large-scale integrated circuits and high-density connectors, the 44mm feeder has become a vital component for high-end server, automotive, and telecommunications manufacturing. The 00141375 utilizes an Advanced Servo-Logic Drive, providing the consistent high-torque output necessary to advance wide, high-friction plastic tapes. Its design is centered on "Positional Stiffness," ensuring that the carrier tape remains perfectly horizontal and centered during the indexing phase, which is critical for the success of large-surface-area pick-up by SIPLACE high-force nozzles.
GEEKVALUE provides the P/N 00141375 with a focus on Vibration Neutralization. We recognize that 44mm components carry significant mass; our feeders are verified for "Deceleration Smoothing" to ensure that components do not "jostle" or tilt within the pocket when the feeder comes to a stop.
Technical Specifications
Feature | Technical Data |
Product Type | Wide-Format Intelligent Electric Feeder |
Part Number (P/N) | 00141375 |
Tape Width | 44mm |
Compatibility | SIPLACE X, SX, and D-Series Platforms |
Drive Architecture | High-Resolution Digital Micro-Stepping Motor |
Pitch Support | Programmable via SIPLACE Software |
Interface | Gold-Plated ASM 12-Pin Intelligent Data Bus |
Strategic Performance Advantages
· Active Torque-to-Mass Compensation: The 00141375 features a drive profile that automatically compensates for the weight of 44mm components. This ensures a consistent "Step-Profile" whether the reel is full or nearly empty, maintaining a stable pick-up coordinate throughout the entire production run.
· Dual-Edge Peeling Synchronicity: Wide 44mm cover tapes require precise tension to avoid tearing or incomplete peeling. This feeder uses a synchronized take-up mechanism that applies even force across the tape's width, preventing the "Tape-Twist" that can lead to pick-up failures on oversized ICs.
· Enhanced Track-Geometry Integrity: The 44mm tape path is precision-milled to resist the lateral forces of heavy material flow. This "Reinforced Track" maintains a rigid Z-axis reference point, ensuring the placement head's vision system can lock onto the component center with minimal adjustment time.
· Digital Traceability & Health Monitoring: As a fully intelligent module, the 00141375 reports real-time motor load and feeding speed to the SIPLACE Setup Center. This allows for proactive maintenance and provides the data logs required for high-reliability manufacturing standards in the automotive and aerospace sectors.
The GEEKVALUE Advantage: "Mastering the Wide-Format Stream"
1. 360° Total Cost Optimization (TCO)
Components on 44mm tapes are often among the most expensive parts of the BOM. GEEKVALUE optimizes your TCO by providing 00141375 Feeders that have undergone Full-Load Indexing Accuracy Audits. By maximizing the first-pick yield of these high-value components, we help you eliminate the massive scrap costs and machine downtime associated with large-part feeding errors.
2. Trusted by 400+ Public Companies
Global leaders in high-performance computing and industrial automation trust GEEKVALUE for their wide-format feeding solutions. Our 00141375 feeders are the reliable choice for listed companies that require heavy-duty durability and 100% data transparency for their mission-critical production lines.
3. Optimized for High-Speed Kitting
GEEKVALUE’s 00141375 units are inspected for Data Pin Conductivity and Alignment Pin Precision. We ensure that when you dock this wide-format feeder, it is recognized by the machine instantly, supporting rapid job changeovers even in the most complex high-mix manufacturing environments.
Frequently Asked Questions (FAQ)
Q1: How many slots does the 44mm 00141375 occupy on a feeder trolley?
A: The 00141375 is a wide-profile feeder and typically occupies the space equivalent to 5.5 to 6 standard 8mm slots. It is recommended to plan your trolley layout to accommodate these wider modules without crowding the gantry path.
Q2: Is this feeder compatible with deep-pocket tapes for large modules?
A: Yes. The 00141375 features a high-clearance exit path specifically designed to handle the deeper pockets and taller Z-heights often found in 44mm packaging formats.
Q3: How does GEEKVALUE verify the "Inertial Accuracy" of the 44mm drive?
A: Every unit undergoes a Dynamic Stress Test. We simulate the physical weight of a full 44mm plastic reel to verify that the stopping position remains stable within $\pm 0.03\text{mm}$ over an 8-hour continuous cycle.
Q4: Can the feeding pitch be software-adjusted?
A: Absolutely. As an intelligent digital feeder, the pitch (e.g., 8mm, 12mm, 16mm, up to 44mm+) is fully programmable through the SIPLACE machine interface, providing maximum flexibility for diverse component lengths.
Q5: What is the packaging standard for this heavy-duty module?
A: We use Class-0 ESD and Reinforced Industrial Packaging. Each 00141375 is vacuum-sealed and protected by custom-fitted, high-density foam to ensure the high-torque motors and alignment pins arrive in perfect factory calibration.
