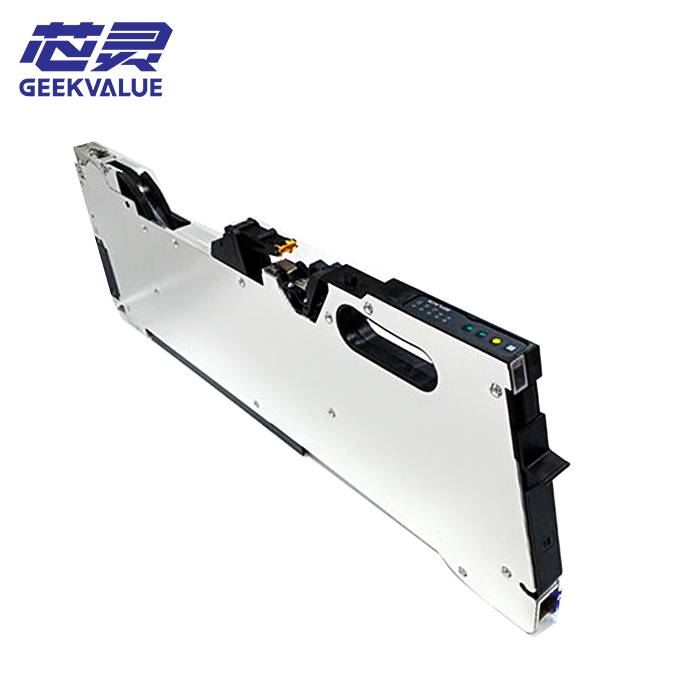

The ASM 00141371 is a heavy-duty intelligent electric feeder purpose-built for 12mm carrier tapes. As SMT designs move toward higher power densities, 12mm components like molded power inductors, high-capacitance tantalums, and specialized ICs have become ubiquitous. The 00141371 is engineered to handle the increased physical resistance of 12mm plastic embossed tapes. It features a reinforced motor-drive architecture that provides Asymmetric Torque Compensation—delivering extra power during the initial tape advancement to overcome the friction of larger reels, while maintaining a "Soft-Stop" to ensure components remain centered in their pockets for the pick-and-place head.
GEEKVALUE provides the P/N 00141371 with a focus on Torsional Rigidity. We ensure that the indexing sprockets and the internal gear-train remain perfectly synchronized, preventing the "Slop" or "Backlash" that can occur when moving mid-width tapes at high speeds.
Technical Specifications
Feature | Technical Data |
Product Type | Mid-Width Intelligent Electric Feeder |
Part Number (P/N) | 00141371 |
Tape Width | 12mm |
Compatibility | SIPLACE X, SX, and D-Series Platform Support |
Drive Architecture | Digital High-Torque Brushless Motor |
Pitch Support | Fully Programmable via SIPLACE Software |
Interface | Gold-Plated ASM 12-Pin Intelligent Data Bus |
Strategic Performance Advantages
· Optimized Wide-Tape Peeling Path: 12mm cover tapes exert significant pull-force. The 00141371 features an enhanced take-up geometry that distributes peeling tension evenly across the 12mm width. This prevents the "Pocket Twist" that can lead to components standing on edge or jumping during the peeling process.
· Inertial Load Calibration: Components in 12mm tapes are often heavier than those in 8mm. This feeder’s drive logic is tuned to manage the higher inertia, using a precision braking sequence that eliminates "Overshoot," ensuring the pick-up coordinate is always within the machine's $\pm 0.03\text{mm}$ window.
· Wear-Resistant Sprocket Design: To combat the abrasive nature of conductive plastic carrier tapes, the 00141371 utilizes hardened alloy drive sprockets. This ensures the teeth maintain a perfect "mesh" with the sprocket holes over millions of cycles, preserving indexing accuracy for the long term.
· Full Smart-Factory Integration: The 00141371 is a "Data-Active" module. It relays real-time consumption and feeder health status to the ASM Material Manager, enabling "Predictive Refill" alerts and ensuring that your high-value 12mm components are never the cause of a line stoppage.
The GEEKVALUE Advantage: "Stability for the Mid-Range"
1. 360° Total Cost Optimization (TCO)
Middle-range components often represent critical power-path nodes on a PCBA. GEEKVALUE optimizes your TCO by providing 00141371 Feeders that have undergone Lateral Stability Audits. By preventing mis-picks of high-value inductors and ICs, we help you avoid the scrap costs and vision-system retries that slow down your gantry throughput.
2. Trusted by 400+ Public Companies
Global leaders in automotive power-trains and industrial power supply manufacturing trust GEEKVALUE for their 12mm feeding solutions. Our 00141371 feeders are the preferred standard for listed companies that require consistent, high-yield placement for their high-reliability electronic assemblies.
3. Certified Mechanical Calibration
GEEKVALUE’s 00141371 units are inspected for Track Parallelism and Electrical Handshake Reliability. We ensure that when you dock the feeder, the machine recognizes it instantly, and the tape advances smoothly without any "Binding" or mechanical resistance.
Frequently Asked Questions (FAQ)
Q1: How many slots does the 12mm 00141371 occupy on a feeder trolley?
A: The 00141371 is designed to be space-efficient. While wider than an 8mm feeder, it typically occupies 2 standard 8mm slots on a SIPLACE X-series trolley, allowing for high-density setups even with mid-width components.
Q2: Is this feeder compatible with deep-pocket tapes used for large inductors?
A: Yes. The 00141371 features a high-clearance exit path specifically engineered to accommodate the deeper pockets common in 12mm tapes without snagging the component during the feed cycle.
Q3: How does GEEKVALUE verify the accuracy of the 12mm indexing?
A: Every unit undergoes a Full-Load Precision Test. We simulate the weight of a 12mm reel and verify that the stopping position remains stable within $\pm 0.025\text{mm}$ over an 8-hour continuous test run.
Q4: Can the feeding pitch be software-adjusted?
A: Absolutely. As an intelligent digital feeder, the pitch (4mm, 8mm, 12mm, etc.) is fully programmable through the SIPLACE machine interface, making it highly versatile for different component lengths.
Q5: What is the packaging standard for this industrial module?
A: We use Class-0 ESD and Shock-Proof Industrial Packaging. Each 00141371 is vacuum-sealed and housed in a custom-fitted foam crate to ensure the motor alignment and data pins arrive in perfect factory calibration.
