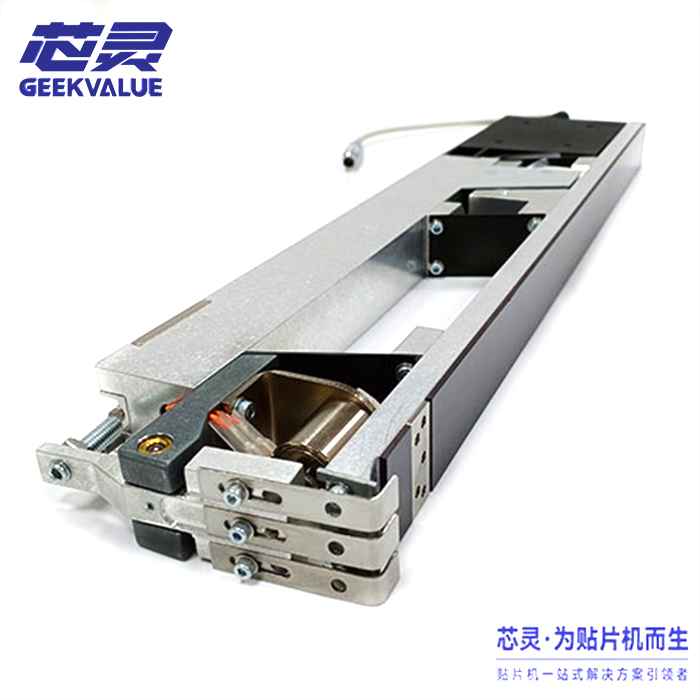

The ASM 00142031 is a Type III professional-grade stick magazine module designed to integrate tubed components directly into the high-speed SIPLACE placement workflow. While tape-and-reel is standard, many specialized ICs and mechanical connectors are still supplied in rigid tubes. The 00142031 bridges this gap by utilizing a high-precision vibrational drive system that advances components from the magazine to the pick-up point with absolute consistency. The Type III architecture features upgraded electronic control boards that allow for finer adjustment of vibration amplitudes, ensuring that even top-heavy or delicate components are delivered without flipping or jamming.
GEEKVALUE provides the P/N 00142031 with a focus on Component-Safe Progression. We understand that tubed components are often larger and more fragile; our modules are verified for "Harmonic Balance" to prevent the excessive vibration that can lead to lead deformation or internal micro-cracking.
Technical Specifications
Feature | Technical Data |
Product Type | Stick / Tube Magazine Module (Type III) |
Part Number (P/N) | 00142031 |
Drive Principle | Programmable Electromagnetic Vibration |
Compatibility | SIPLACE X, SX, and D-Series Platform Support |
Channel Capacity | Multiple Adjustable Channels (Width-Dependent) |
Control Logic | Type III Advanced Intelligence Interface |
Strategic Performance Advantages
· Precision Type III Vibration Logic: The 00142031 utilizes a sophisticated pulse-width modulation (PWM) drive. This allows operators to fine-tune the vibration frequency for each component type, ensuring a smooth "Gliding" motion rather than a "Bouncing" motion. This is critical for maintaining high pick-up rates for heavy or irregularly shaped parts.
· Multi-Tube High Density: The module is designed to hold several tubes simultaneously, maximizing the component capacity per feeder slot. This "Multi-Track" capability allows the SIPLACE gantry to access a wide variety of odd-form components without the need for multiple bulky feeder units.
· Seamless Intelligent Bus Docking: As an ASM-original P/N, the 00142031 docks instantly into the X-series feeder interface. It is fully recognized by the SIPLACE OS, allowing for software-driven adjustments to the feeding speed and real-time monitoring of the magazine's status.
· Quick-Change Channel Guides: To support high-mix production, the module features adjustable guides that can be reconfigured for different tube widths in seconds. This reduces "Setup Latency" and ensures that the component track is always perfectly aligned with the machine's pick-up coordinates.
The GEEKVALUE Advantage: "Tube-to-Track Continuity"
1. 360° Total Cost Optimization (TCO)
Manual placement of tubed components is slow and prone to error. GEEKVALUE optimizes your TCO by providing 00142031 Stick Modules that have undergone Amplitude Stability Audits. By automating the tube-feeding process, we help you eliminate the bottleneck of "Odd-Form" placement and significantly increase your net line speed.
2. Trusted by 400+ Public Companies
Global leaders in industrial automation and power supply manufacturing trust GEEKVALUE for their specialized feeding solutions. Our 00142031 modules are the standard choice for listed companies that require "Zero-Friction" feeding for high-value power ICs and large-format connectors.
3. Optimized for Lean Factory Logistics
The 00142031 supports the "Lean" principles of organized material flow. GEEKVALUE’s units ensure that empty tubes are easily detectable and that the replenishment process is streamlined, allowing operators to swap tubes without disrupting the continuous operation of the placement gantry.
Frequently Asked Questions (FAQ)
Q1: How does "Type III" differ from older stick magazine types?
A: Type III (00142031) features improved electrical shielding and more granular vibration control compared to Type I or II. It is specifically optimized for the faster communication protocols and higher gantry speeds of the X and SX series machines.
Q2: Can I run different types of tubes on the same module simultaneously?
A: Yes, provided the vibration frequency required for the components is similar. The module offers mechanical adjustment for different tube widths across its multiple lanes.
Q3: How does GEEKVALUE verify the vibration consistency?
A: Every unit undergoes a Component-Flow Stress Test. We use high-speed sensors to measure the vibration amplitude at multiple points along the track to ensure there are no "Dead Zones" where components might stop or "Hot Spots" where they might jump.
Q4: Is the module compatible with the SIPLACE Setup Center?
A: Absolutely. It is a fully intelligent module that provides the necessary data to the Setup Center for component verification and traceability.
Q5: What is the packaging standard for this high-precision module?
A: We use Industrial-Grade Reinforced Crating. Given the internal electromagnetic components and the precision-machined guides, each 00142031 is vacuum-sealed and housed in custom-fitted, shock-absorbent foam to ensure it arrives in perfect calibration.
