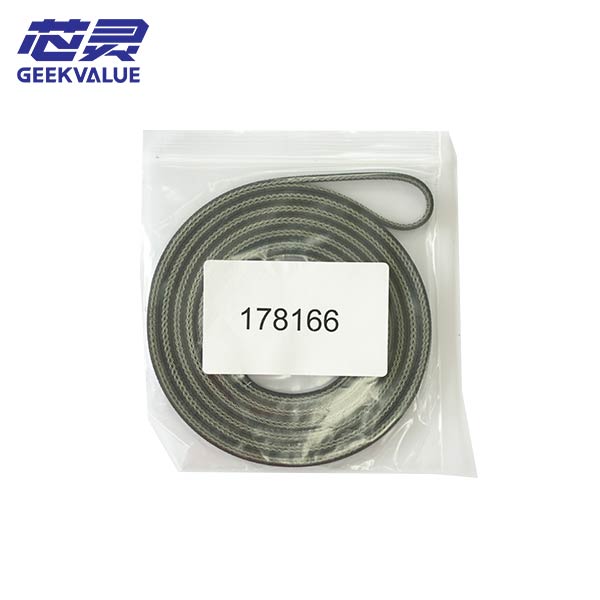

The DEK D-178166 Belt is a high-performance drive component specifically engineered for DEK’s world-leading screen printing platforms (such as the Horizon and NeoHorizon series). This belt is responsible for the synchronized movement of the printing carriage or board transport system, where even a micron of deviation can compromise solder paste deposition.
GEEKVALUE provides the P/N D-178166 with a focus on Dynamic Linearity. We ensure that your DEK printer maintains its legendary accuracy by providing a belt that offers zero-backlash performance and exceptional tensile strength.
Technical Specifications
Feature | Technical Data |
Product Type | High-Torque Precision Drive Belt |
Part Number (P/N) | D-178166 |
Compatibility | DEK Horizon, NeoHorizon, and ELA Series |
Core Material | High-Modulus Synthetic Fiber / Steel Reinforcement |
Surface Coating | Low-Noise, Anti-Static Polymer |
Application | Squeegee Drive, Camera Gantry, or Rail Transport |
Key Performance Advantages
· Precision Timing Geometry: The tooth profile of the D-178166 is molded to exact tolerances to match DEK's high-resolution drive pulleys. This eliminates "ghosting" or "shudder" during the squeegee stroke, ensuring a uniform solder paste print across the entire stencil.
· Thermal and Chemical Resilience: Screen printing environments involve constant exposure to solder pastes, solvents, and cleaning agents. This belt is manufactured from a specialized compound that resists chemical swelling and remains stable under the heat generated by 24/7 high-speed operation.
· Vibration Damping Properties: The material composition is designed to absorb micro-vibrations from the motor, providing a smooth, linear motion that is critical for the "fine-pitch" printing required by 01005 and 008004 components.
· Long-Term Tension Retention: Unlike standard industrial belts, the GEEKVALUE-supplied D-178166 is pre-stretched to ensure it maintains its tension settings long after installation, reducing the need for manual adjustments and downtime.
The GEEKVALUE Advantage: "Printing Perfection"
1. 360° Total Cost Optimization (TCO)
In screen printing, the "Cost of Failure" is high—a single bad print can ruin an entire batch of PCBs. GEEKVALUE optimizes your TCO by providing drive belts that guarantee Process Repeatability. By ensuring your DEK printer stays in perfect mechanical alignment, we help you achieve a higher "First-Pass Yield" (FPY).
2. Trusted by 400+ Public Companies
As a specialized supplier to the world's leading EMS providers, GEEKVALUE understands that a screen printer is only as good as its weakest mechanical link. Our P/N D-178166 is the preferred choice for listed companies who demand the highest standards of reliability for their SMT front-end processes.
3. Smart Factory Integration
Modern DEK printers are equipped with advanced sensors to monitor motion accuracy. GEEKVALUE’s high-precision belts ensure that the mechanical response of your printer perfectly matches the digital commands from your "Smart Factory" control system, enabling seamless high-speed production.
Frequently Asked Questions (FAQ)
Q1: Will the D-178166 belt fit all DEK Horizon models?
A: The P/N D-178166 is a specific size and tooth-count belt used in several DEK gantry and transport configurations. GEEKVALUE will verify your specific printer sub-model and serial number to ensure this belt is the exact mechanical match for your machine's drive system.
Q2: How does a worn belt affect solder paste print quality?
A: A worn or stretched belt can cause "stuttering" during the squeegee stroke, leading to uneven paste thickness or "slumping." If you notice inconsistencies in your SPI (Solder Paste Inspection) results, a drive belt replacement is often the most cost-effective solution.
Q3: Is this belt ESD-safe?
A: Yes. The D-178166 is treated with an anti-static coating to prevent the buildup of triboelectric charges. This is vital in the printing zone to ensure that static does not interfere with the delicate stencil-to-board separation process.
Q4: What is the lead time for this DEK part?
A: We recognize that screen printing is the first step in your SMT line. We maintain a robust "Smart Stock" of DEK consumables like the D-178166 to ensure we can provide rapid global shipping, keeping your line-front operational.
