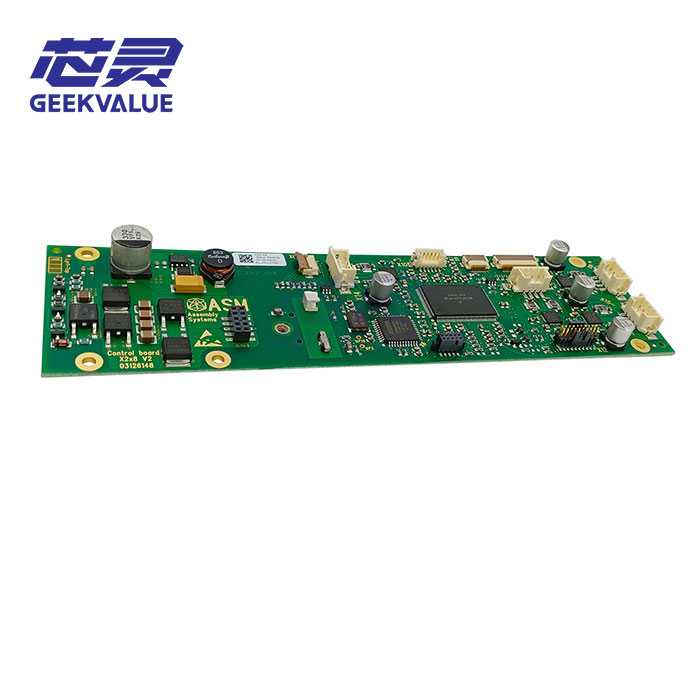

The ASM 03126149 Control Board is a high-density processing module designed to serve as the primary logic interface for advanced SIPLACE placement platforms. This board is responsible for orchestrating the high-speed synchronization of the vision system, placement heads, and feeding units. It processes millions of data points per second to ensure that every "Pick-and-Place" cycle is executed with mathematical precision.
GEEKVALUE provides the P/N 03126149 with a focus on Computational Reliability. We understand that a logic failure can result in unpredictable machine behavior or system-wide crashes. Therefore, our boards are verified for perfect signal timing and data bus integrity to keep your "Smart Manufacturing" environment running at peak efficiency.
Technical Specifications
Feature | Technical Data |
Product Type | Main Logic / System Control Board |
Part Number (P/N) | 03126149 |
Compatibility | SIPLACE X-Series, SX-Series, and Modernized HF Systems |
Data Bus | High-Speed Real-Time Communication Interface |
Memory Architecture | Enhanced Buffer for High-Resolution Vision Data |
Function | Multi-Module Synchronization & Logic Execution |
Core Technical Advantages
· Next-Gen Processing Speed: The 03126149 is engineered to handle the massive data overhead of modern, high-resolution ASM vision systems. It allows for the real-time processing of complex component shapes without slowing down the gantry’s cycle time.
· Advanced Signal Shielding: Designed with a multi-layer PCB architecture, this board features superior electromagnetic interference (EMI) shielding. This ensures that the high-frequency environment of an SMT line does not cause "Bit-Errors" or logic glitches.
· Seamless Hardware Handshaking: The 03126149 facilitates perfect synchronization between the X-Y-Z axes. It ensures that the placement head is exactly where the software expects it to be, exactly when the vacuum trigger is fired.
· Robust Diagnostic Kernel: Equipped with a sophisticated on-board diagnostic system, the board can identify hardware faults in peripheral modules (feeders, heads, or sensors) and report them instantly, minimizing the "Mean Time to Repair" (MTTR).
The GEEKVALUE Advantage: "The Digital Backbone"
1. 360° Total Cost Optimization (TCO)
A logic failure often leads to hours of diagnostic guesswork. GEEKVALUE optimizes your TCO by providing 03126149 boards that are Functional-Cycle Tested. By ensuring the board is 100% stable before it reaches your factory, we prevent the "Trial-and-Error" part swapping that inflates maintenance costs.
2. Proven Stability for 400+ Public Companies
In the world of listed electronics manufacturing companies, data security and system uptime are non-negotiable. GEEKVALUE is the trusted partner for these firms, supplying control boards that meet the highest industrial standards for component longevity and firmware stability.
3. Future-Proof Manufacturing
As SMT lines move toward AI-driven optimization, the 03126149 acts as the essential gateway for data. GEEKVALUE’s boards support the high-speed data throughput required for real-time OEE tracking and cloud-integrated manufacturing analytics.
Frequently Asked Questions (FAQ)
Q1: What are the signs that my 03126149 Control Board is failing?
A: System "Freezes," frequent communication errors (e.g., "CAN-Bus Error" or "Module Not Found"), and inability to load placement programs are common symptoms. If the machine fails its self-test during boot-up, the control board logic may be compromised.
Q2: Does the board require specific firmware installation?
A: Yes, the 03126149 must be matched to your machine's software version. GEEKVALUE’s technical team can assist in verifying that the board is configured correctly for your specific SIPLACE OS to ensure a smooth "Plug-and-Play" experience.
Q3: How does GEEKVALUE verify the integrity of these complex boards?
A: We use advanced In-Circuit Testing (ICT) and Functional Testing (FCT) to verify every data path and capacitor. This ensures that the board doesn't just "turn on," but performs under the full load of a high-speed production environment.
Q4: Is the 03126149 resistant to factory dust and humidity?
A: The board features a high-quality conformal coating that protects the delicate circuits from moisture and conductive dust common in SMT environments. However, GEEKVALUE always recommends maintaining the machine’s cooling fan filters to ensure long-term health.
Q5: How is this high-value part protected during international shipping?
A: We use Military-Grade ESD Protection. Every 03126149 is vacuum-sealed in a moisture-barrier antistatic bag and housed in a custom-fitted, shock-dampening enclosure to ensure it survives the rigors of global transit.
